BIBLE DIAGRAMS and CHARTS



Our Bible Diagrams gallery is a personal collection of charts, illustrations, maps, visuals - free evangelism resources for explaining spiritual concepts.  Included in this collection are ancient Bible timelines, because history is built on chronology, and good chronology is so much easier to understand with charts. Download and use, but please acknowledge copyright.

​

​

​

Bible Diagrams.

Graphic diagrams for teaching and explaining spiritual concepts.

​

​


Bible Timelines.

Prophetic and chronological timelines in the Bible. (no future date setting)

​

​

​

Bible Maps.

Maps of the 12 tribes, ancient empires, journeys, and footprints of biblical people.

​

​

​

Theological Charts.

Theological information tables showing data related to various  biblical subjects.

​

navigation button – bible diagrams
navigation button – theological charts
timeline - maccabee period

"You can discern the face of the sky; but can you not discern the signs of the times?"

(Matthew 16:3)

​

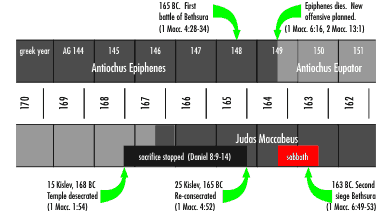

Maccabees Period Chart.


navigation button – bible diagrams

BIBLE DIAGRAMS

(​Use arrows to scroll horizontally.  Click image to enlarge)



BIBLE TIMELINES

(​Scroll vertically to view)


Life of Jacob
timeline – 490 years
Bible timeline Babylon to Greece
Daniels 70 Weeks "From the going forth of the command to restore and buildJerusalem."(Daniel 9:25)(Ezra 7) There shall be seven weeks and sixty-two weeks (69 × 7 = 483 years) "He shall confirma covenant withmany for one week,but in the middleof the week heshall bring an end to sacrifice and offering."(Daniel 9:27)(John 19:30) "The people ofthe (other) princewho is to comeshall destroy thecity and thesanctuary."(Daniel 9:26)(Matt. 24:1-2) "Until Messiahthe Prince."(Daniel 9:25)(John 1:29,34)(Mark 1:15) 3½ 3½ Messiahmanifest finalsacrifice gospelto gentiles templedestroyed Artaxerxesdecree Seventy weeks (70 × 7 = 490 years) are determined for your people and for your holy city, 457 BC AD 26/27 AD 30 AD 70 AD 34
Chronology of the Cross Templeconstructionbegins 20 BC Jesus born5 BC Tiberius co -regent AD 12 46 years 30 years 15 years 3 yr 3½ yr John 20:20 April AD 27Christs baptismlate AD 26
Date of Christ's death AD 30 34 years after birth (5 BC) 3.5 years after baptism (AD 26) 49 yrs after temple start (20 BC) Conversion St. Paul (early AD 33) 40 years before AD 70 (Eusebius) Astronomical data (AD 30 or 33)
timeline - passion week
The 70th week
The Israel of God believing patriachs chosen unbelieving cut off believing grafted in believing grafted back Ethnic Jewish Race Ethnic Races Gentile National Jewishstate AD 1948 Major revival ofJews precedingChrist's return Times of Jacob Times of the Gentiles Jew and Gentile 12 tribes ISRAEL ISRAEL ISRAEL
A-millennial view
